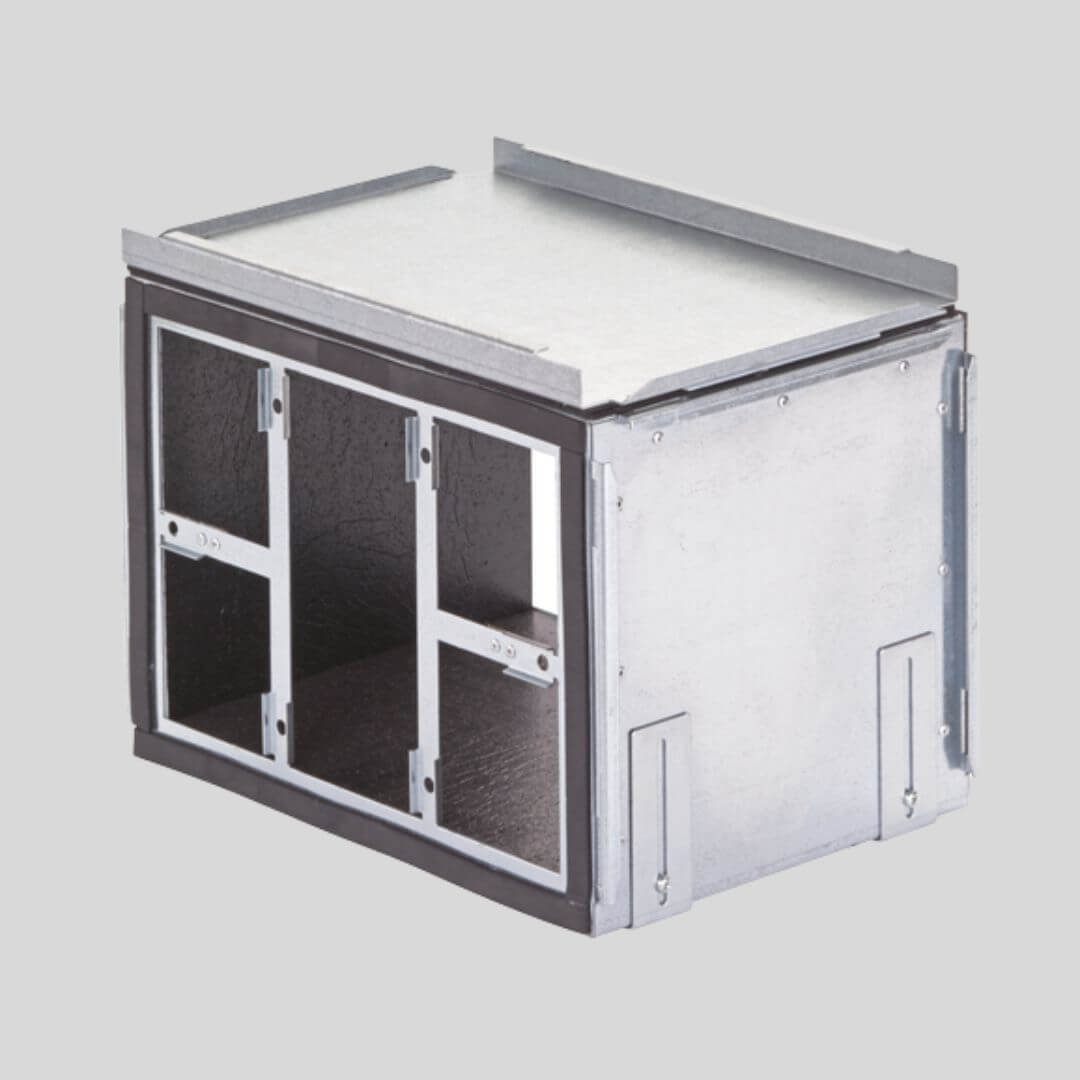

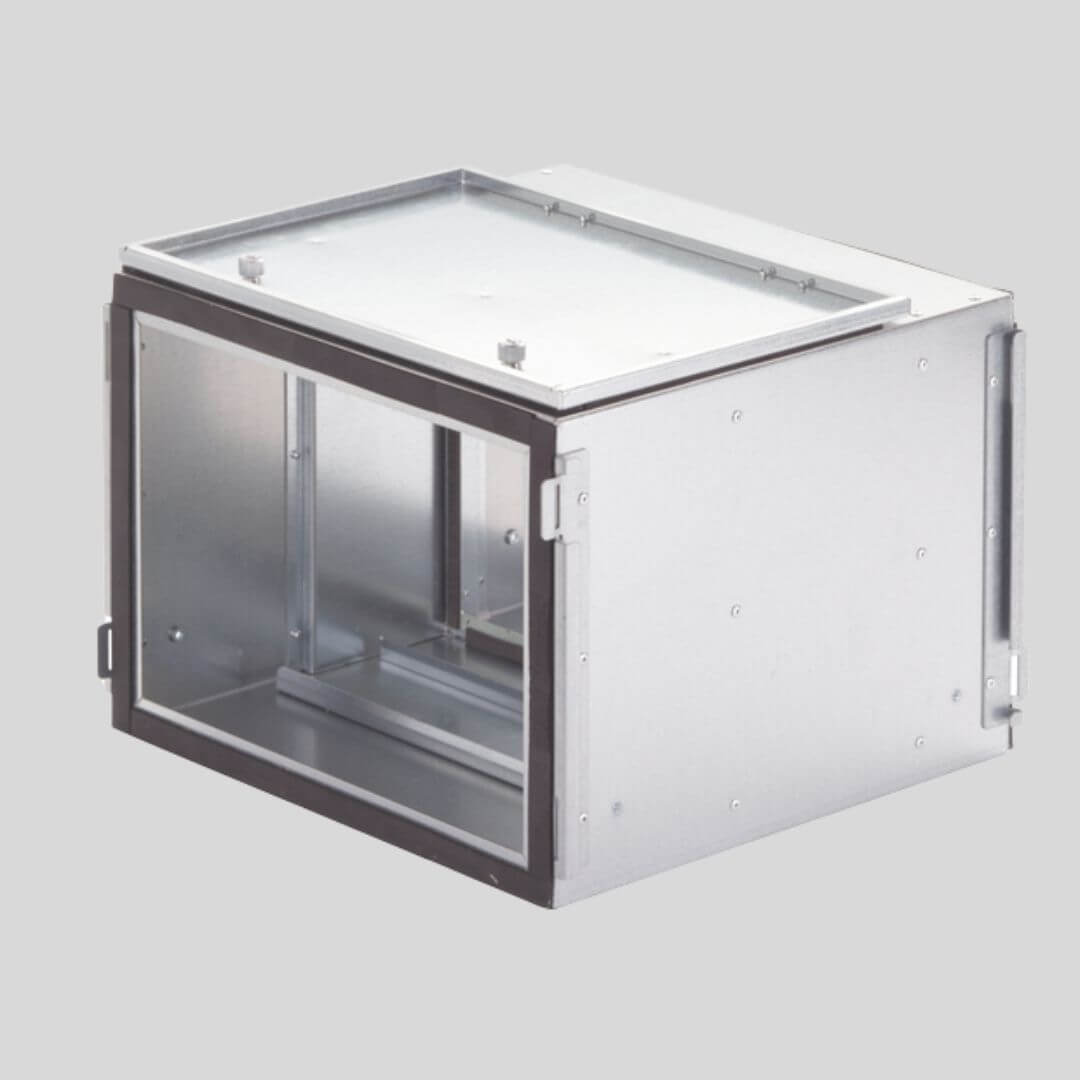

The ComfoWell 320 is a modular system consisting of attenuators, fine grade filters and active carbon filters all integrated for use with a rigid or semi-rigid ductwork approach. With a width of 320mm it can be used for connecting up to 6 ComfoTube connections. The systems compact dimensions ensure good sound absorption and also make it easy to clean. Rigid pipe can be connected to the end plate securely by utilising the gasket seal connection. All other components are fitted using the locking slide connections to form an air tight and robust seal.

Noise reduction can be improved by combining two attenuators together. Filters are available in ISO ePM1 >80% (F7) or ISO ePM1 >90% (F9) grade in addition to an odour neutralising active carbon filter.

• Attenuator, fine grade filter, active carbon filter and manifold all combined into one space saving combination with the option to bespoke build exactly what is required.
• Easy to assemble thanks to its modular and compact design.
• Multifunction unit incorporates: attenuator, fine filter, activated carbon filters, manifold
• Modular design
• Compact dimensions
• Easy to clean
• Components are easily and securely coupled using sliding pins supplied
• Direct connection between all ComfoWell components

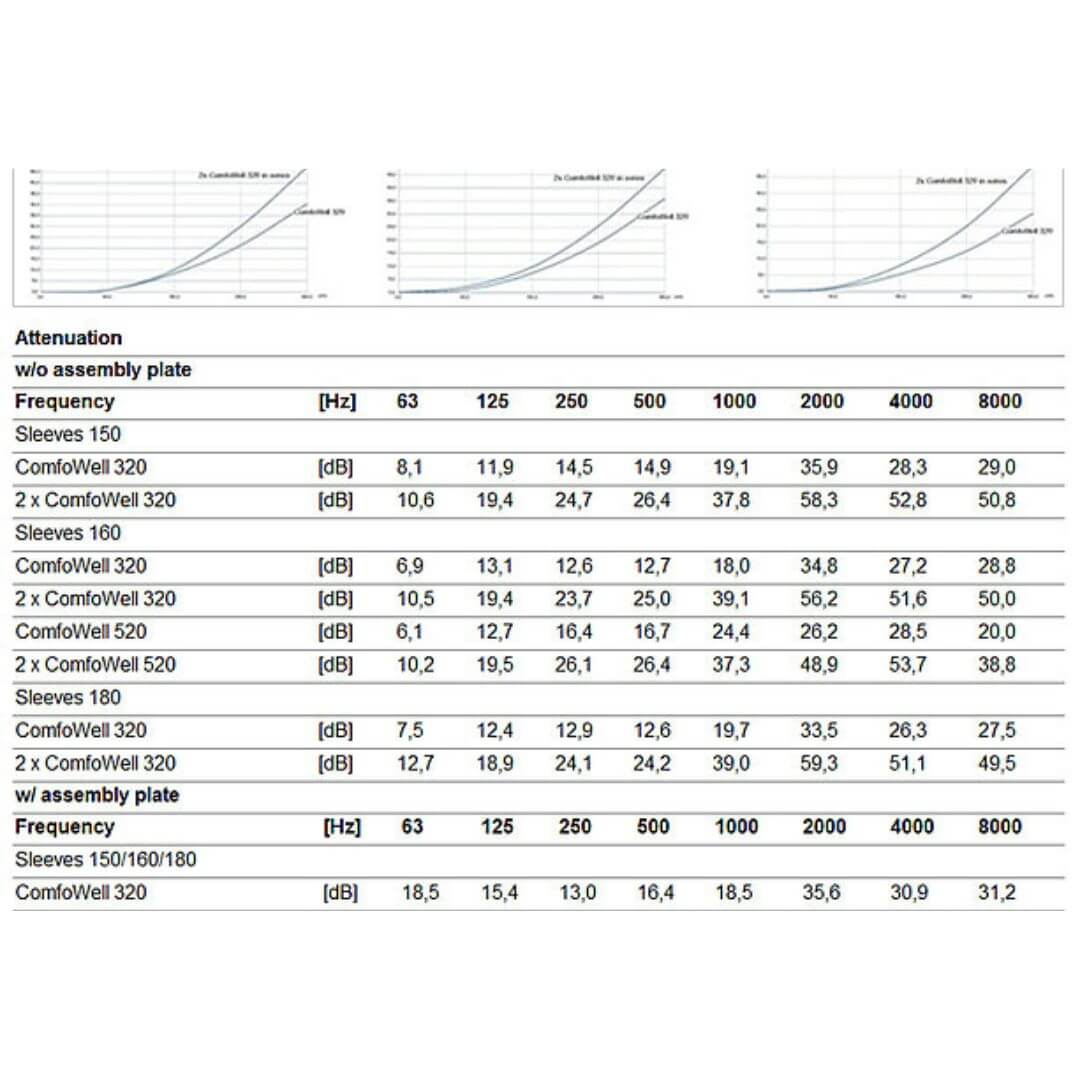

• Excellent sound attenuation
• Additional noise reduction possible by using two units connected in series
• Mounting kit available for vertical mounting of the silencer on the CA200 & CA350
• High-efficiency filters up to fine-filter class F9 available
• Odour neutralization by activated carbon filter
• Components available in 320 mm width allowing the installation of up to 6 ComfoTubes (Comfotube 75mm or Comfotube 90mm)
